Bias Bench
Fixed and cathode bias, push-pull and single-ended, with screen-grid current and PSU sag accounted for. The math from the tech pages, done for you.
High voltage — read this first
The B+ rail in a tube amp sits at 400–500 V DC and it can kill you. Filter capacitors hold that charge for minutes — sometimes hours — after the amp is unplugged. Before your hands go near the chassis: discharge the caps through a bleeder resistor, then verify with your meter that B+ has fallen to a safe level. Keep one hand in your pocket while probing a live amp. If any of this is unfamiliar, this is not the job to learn it on.
Setup
Push-pull · Fixed bias · 6L6GC · ×4
Measure DC voltage between the OT center tap and each plate (outer winding end). You'll also need each half's DC winding resistance and the B+ voltage at the center tap.
Datasheet reference
Pd max 30W · Pg2 max 5W✓ sourced
Datasheet typical (fixed bias, PP): 450V / 58mA per tube → 26.1W
RCA RC-30, pp.353–354 (Design-Maximum rating)
Tube count
Measurement grouping
"Shared per side" is the standard method: measure CT-to-plate drop across each OT half. Individual only applies if this amp has dedicated per-tube test points.
Measurements
Power supply sag — optional
B+ isn't a fixed number — it droops as total current draw rises, because the supply (choke, dropping resistor, transformer/rectifier regulation) has its own source impedance. This only matters for "set a target" measurement points below: it corrects the required voltage for the fact that B+ will be lower once the bias is actually brought up to that target than it is right now at the current (measured) draw.
Estimate it from your supply's choke/resistor DC resistance plus rectifier regulation, or from two real B+ readings at two different current draws: Rsource ≈ ΔB+ / ΔI.
2 tubes
2 tubes
Screen grid (Vg2) — optional
Fill this in if screen voltage runs noticeably below B+ (power-scaled/variable-Vg2 designs) or you want screen dissipation checked independently. Leave blank for a plain pentode/tetrode running screen straight off B+ — it's not needed for the plate-dissipation numbers above.

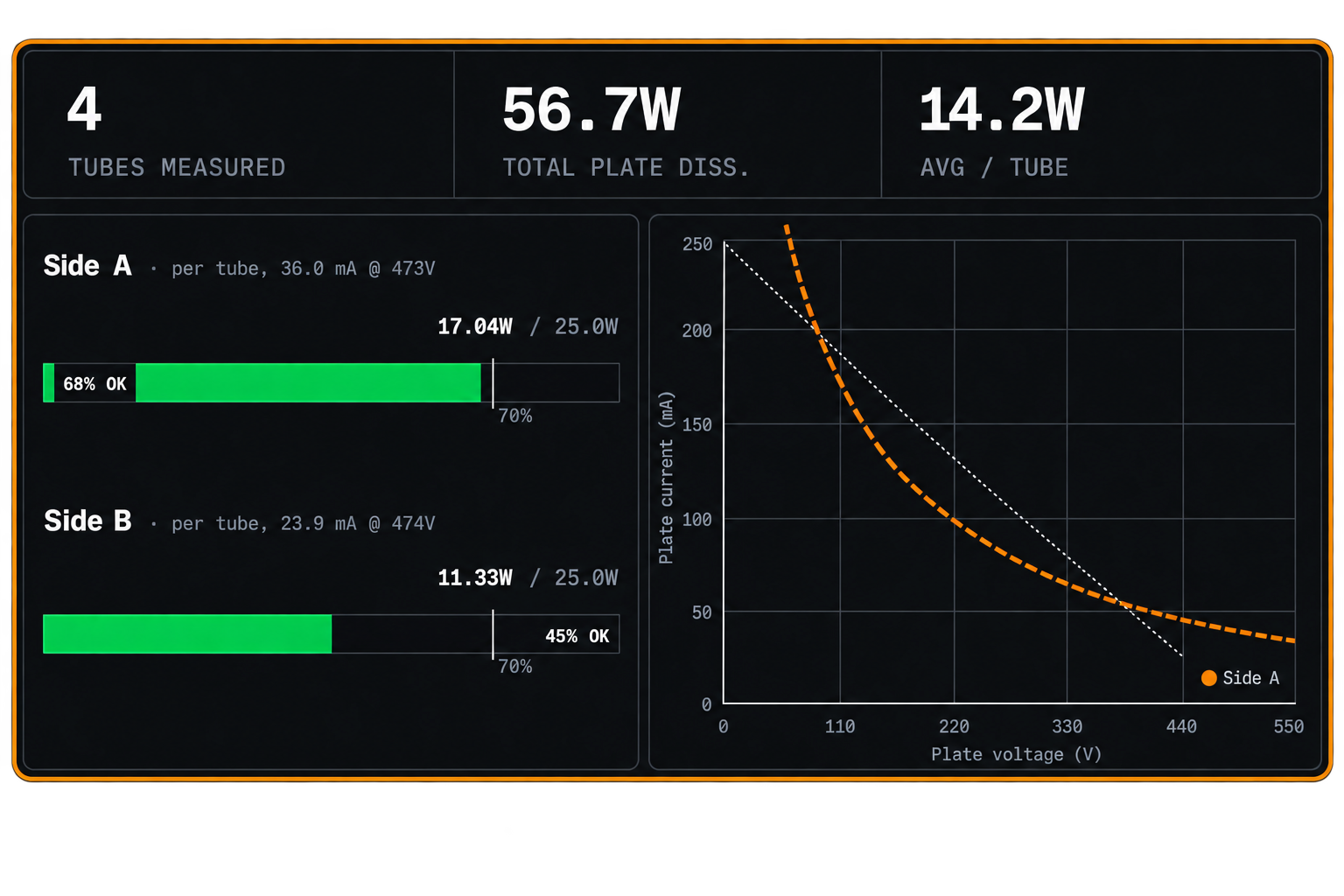

Results
6L6GC · Push-pull · Fixed bias · Quartet (4) · Shared per side (2 points)
Enter B+ and each measurement point's resistance/voltage above — or set a target — to see results.
Bias target threshold
A common conservative target is 60–70% of rated dissipation for tube longevity. 100% is the datasheet's absolute figure, not a safety margin.
Operating point
Amp profiles & history
Saves winding/resistor values and tube setup — not today's voltage readings, so you're prompted for fresh measurements every time you re-bias.
Reading history
No saved readings yet.
Backup
Tube ratings sourced from datasheets where noted; unverified entries are flagged. This tool estimates dissipation from your measurements — it does not replace datasheet judgment or amp-specific service literature. All data stays in this browser; nothing is uploaded.
Where this comes from
The method behind the numbers
Bias Bench uses the output-transformer resistance method — safer than putting a meter in series with the plate current, and second only to a scope on a dummy load. The full bench procedure, with the math worked through step by step, is written up here.
